5V 電池組獨立電源充放電機

 外觀尺寸  8Chs/Box 適用：5V10A、5V20A



通訊端口





設備規格

Model				TPT-B1S1010A	TPT-B1S2020A
Load Range				5V ±10A	5V ±20A
				50W	100W
AC Input				AC230V/6A	AC230V/11.6A
Channels				8 Chs/Box
Output Function		Charge		CC、CC-CV、CC-CP	CC、CC-CV、CC-CP
		Discharge		CC、CC-CV、CC-CP	CC、CC-CV、CC-CP
Output	CC	Range		+10A/-10A	+20A/-20A
		Resolution		1mA	1mA
		Accuracy		± 0.02% F.S.	± 0.02% F.S.
	CV	Range	Charge	-1.0V ~ 5.0V	-1.0V ~ 5.0V
			Discharge	2.0V ~ 5.0V/L=5M；1.5V ~ 5.0V/L=2M；1.5V~0V/L=2M  (Note1)
		Resolution		1mV	1mV
		Accuracy		± 0.02% F.S.	± 0.02% F.S.
	CP	Range		±50W	±100W
		Resolution		0.1W	0.1W
		Accuracy		± 0.05% F.S.	± 0.05% F.S.
Measurement	Voltage	Range		0 ~ 5.1V	0 ~ 5.1V
		Resolution		0.1mV	0.1mV
		Accuracy		± 0.02% F.S.	± 0.02% F.S.
	Current	Range		0 ~ 10.3A	0 ~ 20.6A
		Resolution		0.1mA	0.1mA
		Accuracy		± 0.02% F.S.	± 0.02% F.S.
	Temperature	Range		-30℃ ~ 0℃ ≦ ±1℃；0℃ ~ 100℃ ≦ ±0.5 ℃；100℃ ~ 140℃ ≦ ±1℃
		Resolution		0.1℃	0.1℃
		Accuracy		± 1℃	± 1℃
Output Protection				Over voltage、Under voltage、Over current、Under current、Over temperature、Reverse polarity、Fuse
Heat Sink Protection				Heat sink overheat detection stop

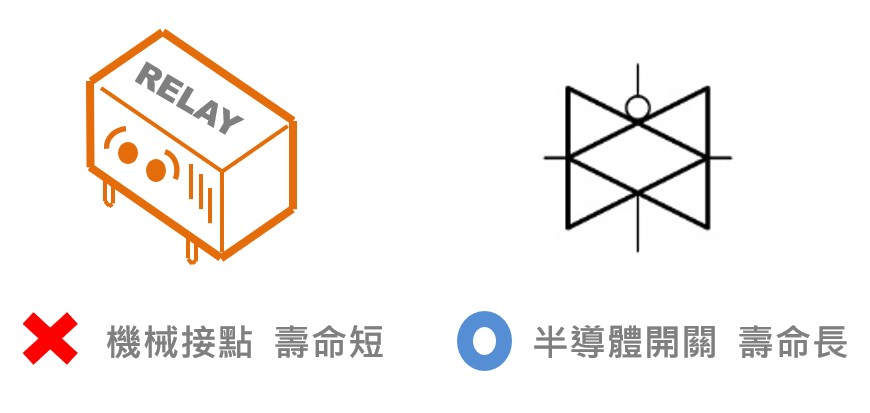

Charge/Discharge switch life				> 10^12；Unlimited number of charge/discharge switches, 5 Year s  warranty
Communication Port				RS485；BR=115,200；Isolated ±15KV ESD
Dimension (W x H x D)mm				483W x 270H x 365D (mm)
Operating Environment				10 ~ 40℃；20 ~ 90 %HR

Note1： 同 DC Load 功能特性。當電池電壓低於 1.5V 以下時，放電電流會呈現線性模式下降，直到電壓電流為0V、0A。

當測試線長度小於測試規格值時，電壓下限值還可以更低
