B1HC、B4HC Series
Battery Cells/ Pack Portable / Desktop Tester
5V/20V Portable / Desktop – B1HC/B4HC Series

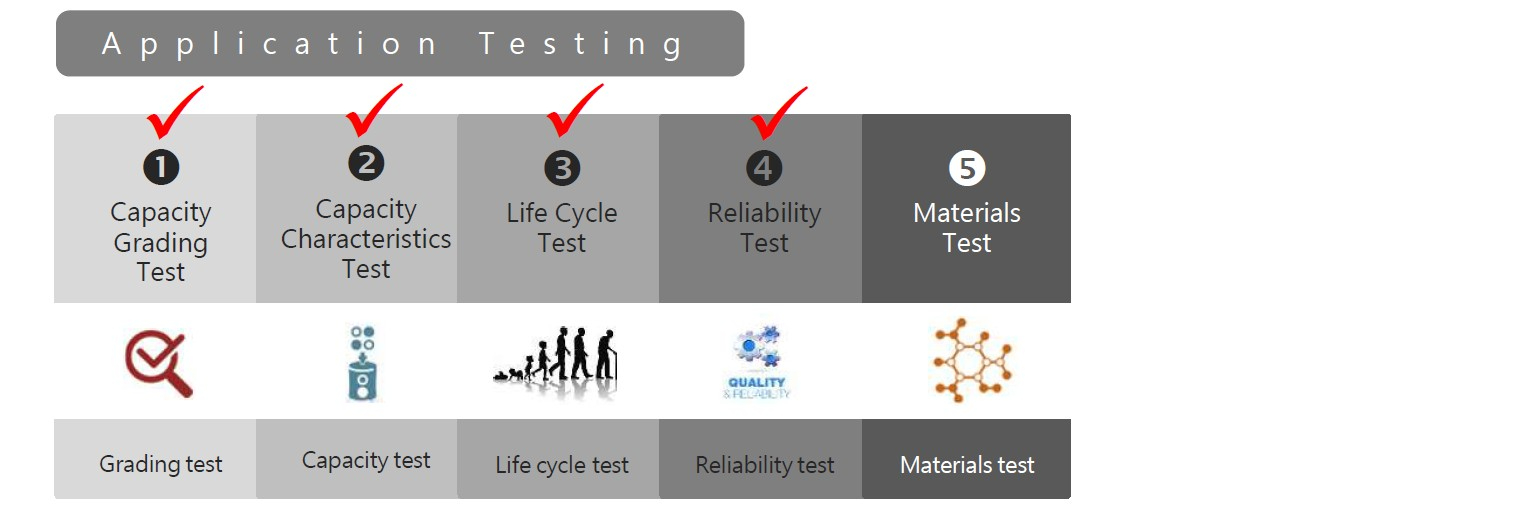

A universal high accuracy portable charge/discharge equipment specially designed for 3C battery cells / pack test. It small in size , movable , and with USB communication. Whenever it 's convenient to test the battery pack for the engineers.
±0.02% Precise Output and Measurement

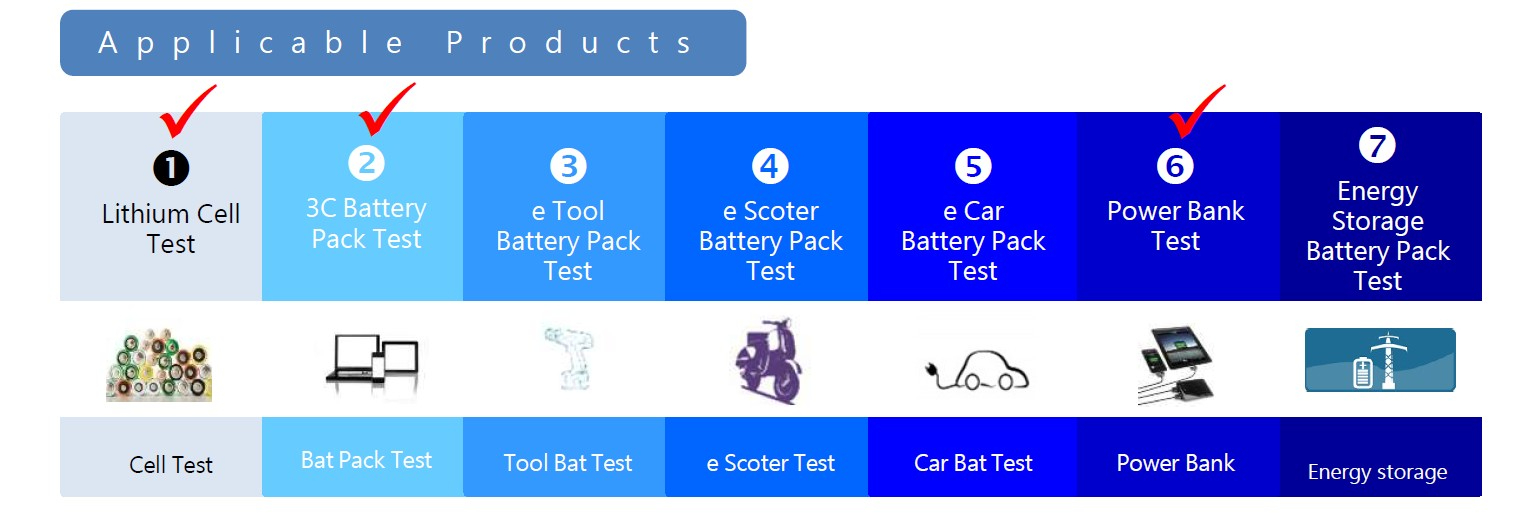

To meet the variety of different types of batteries test current for the engineer’s accuracy request. The cellular phone, tablet, NB, Power Bank or general handheld <20V battery cells / packs are suitable.
> 100,000,000,000 Switching Lifetime
The internal structure of the charger/discharger adopts our proprietary patented design with no moving components, eliminating the limited lifespan issues associated with mechanical relays and achieving the requirements for long-term reliability testing.

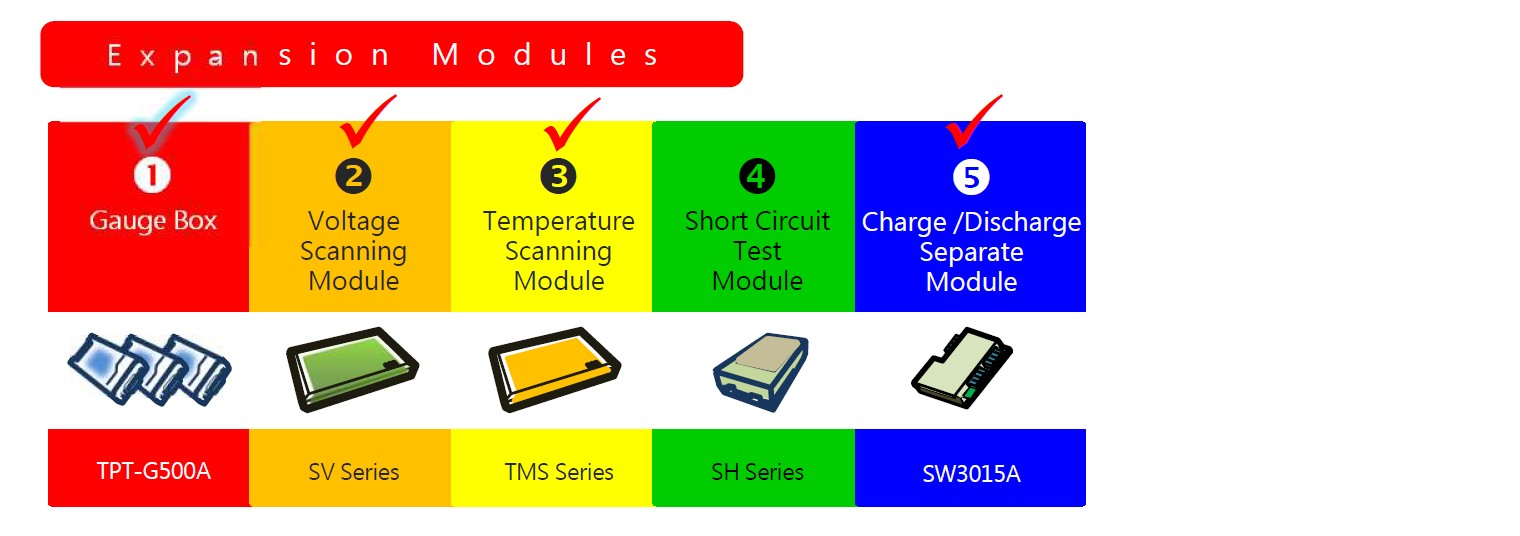

Variety of peripheral devices
To meet your testing requirement with a variety of styles external test module.
◆ External short-circuit module : Test the protection characteristics of the battery pack while it short-circuited.
◆ Charge / Discharge separation module : Its used to do Power Bank test
◆ Gas Gauge Box : TPT-G500A allows the user to have three types of communication I²C, SMBus, HDQ simultaneously.
◆ Temperature scanning module : TPT-TMS16A, TPT-TMS16B allows the user simultaneously to scan 16 CellT temperature.
◆ Voltage scanning module : TPT-SV0516A allows the user simultaneously to scan 16 CellV voltage.

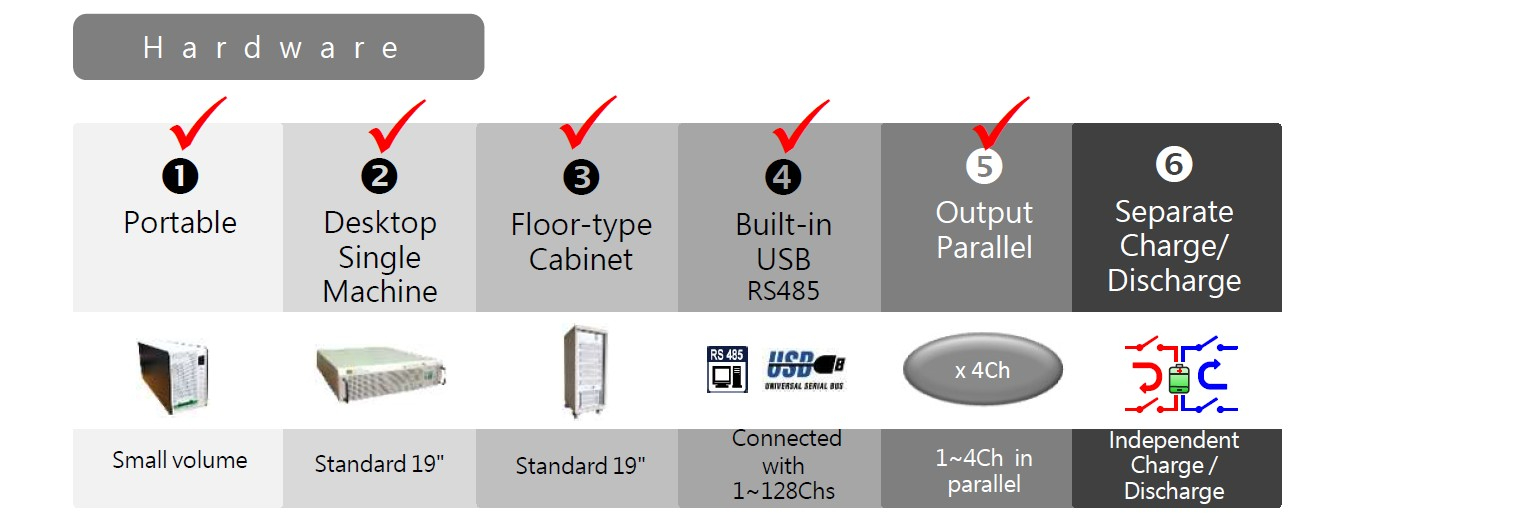

Variety of peripheral devices

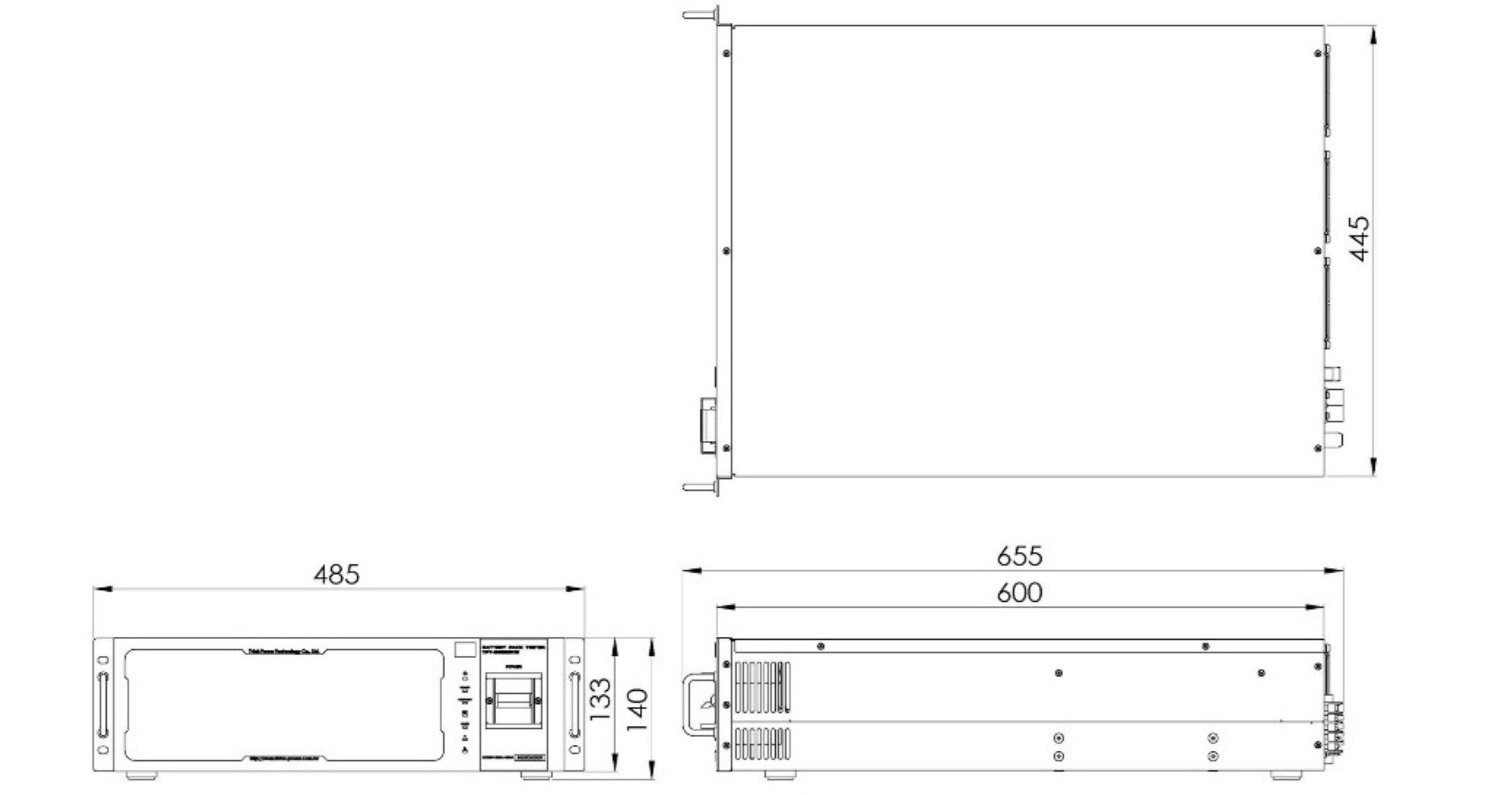

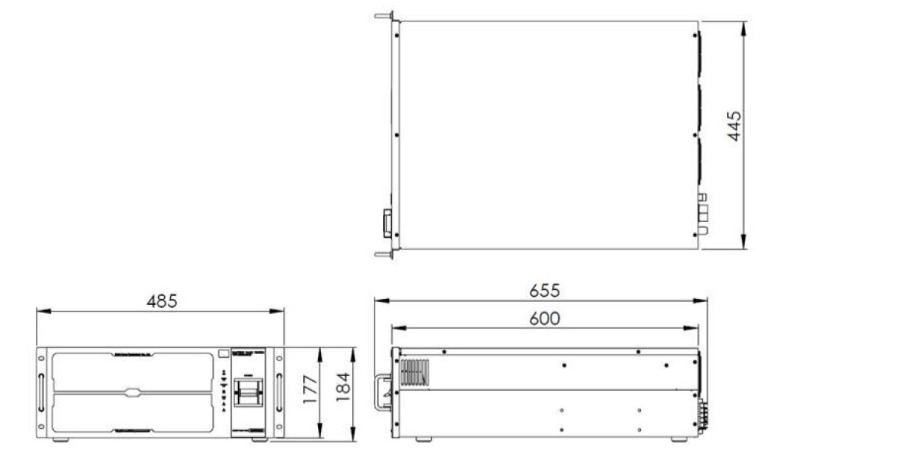

Can use a single channel in the desk or laboratory table, also use the same channel, instead of the cabinet 1 ~ 128 Chs multi-channel. To meet the user all kinds of needs in testing, quality control, development, production.
Customized Expansion Module
You will need special test functions with the different project testing, production requirements. For example, CANBus, NFC, special definition I / O, special control Chamber ... and so on.Our company can provide customized service, to help your test progress in different projects more convenient, faster and also reduce the workload of manpower.Please feel free to contact with THINK POWER TECHNOLOGY.
Customized agencies
Customized multi-channel cabinets are available.For the customer unique production needs, we provide customized fixture design service. To speed up your production rate in different projects more convenient, faster and also reduce the workload of manpower.For more Information, Please feel free to contact with THINK POWER TECHNOLOG.

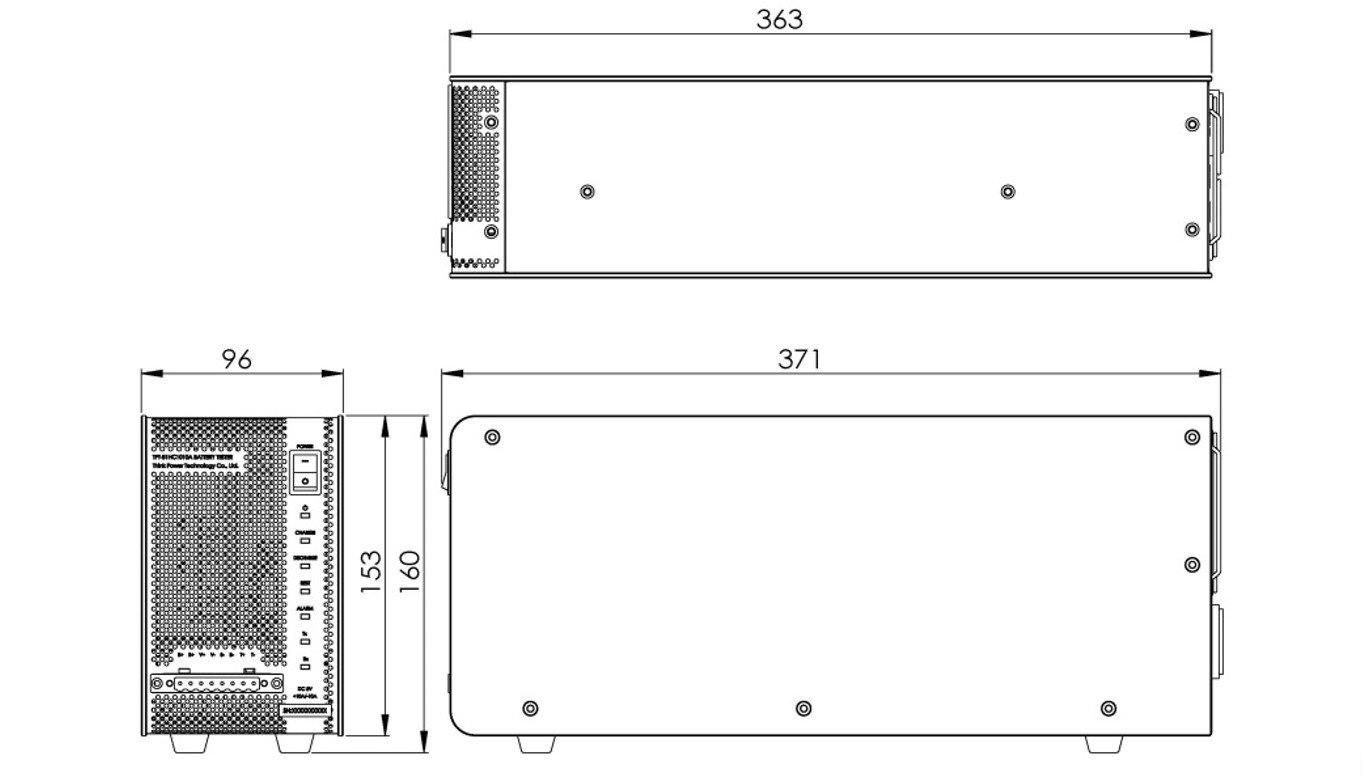

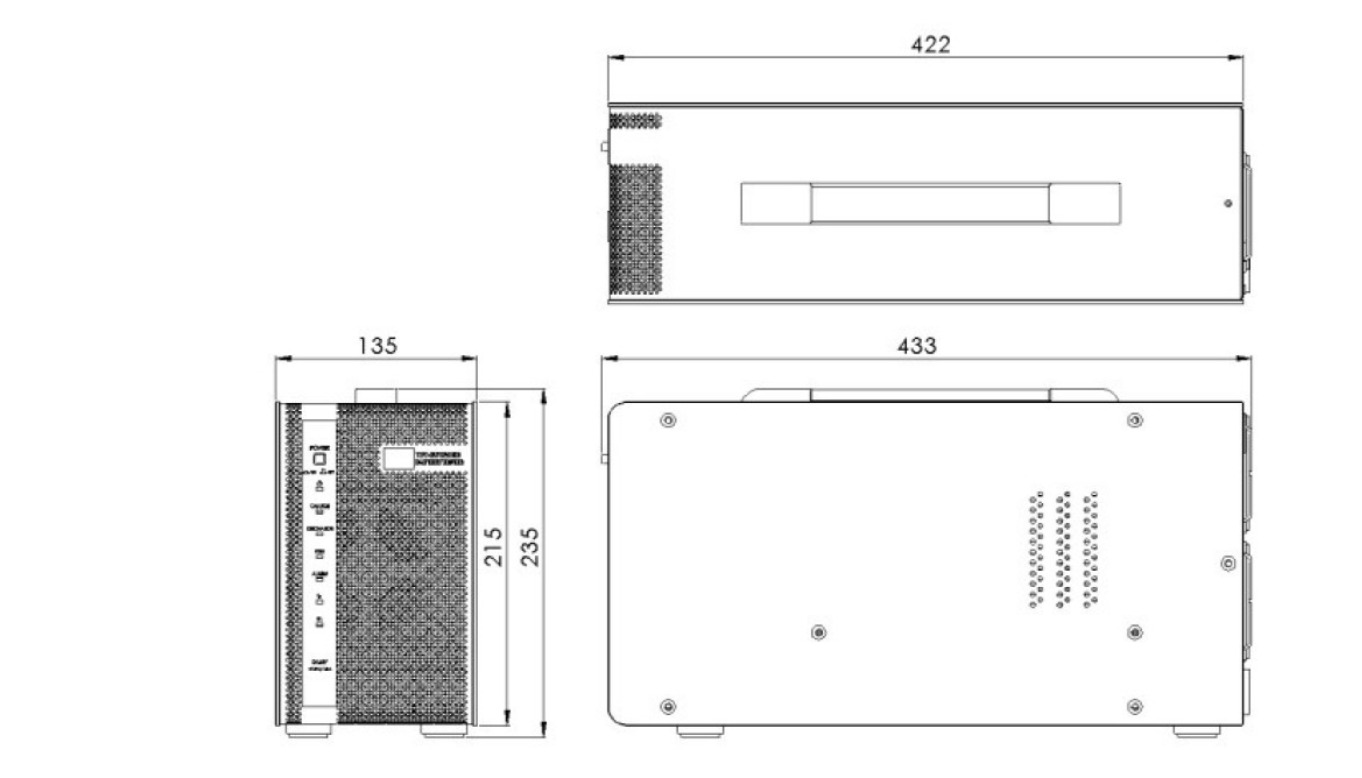

100W Frame Dimension Range：5V20A Unit：mm

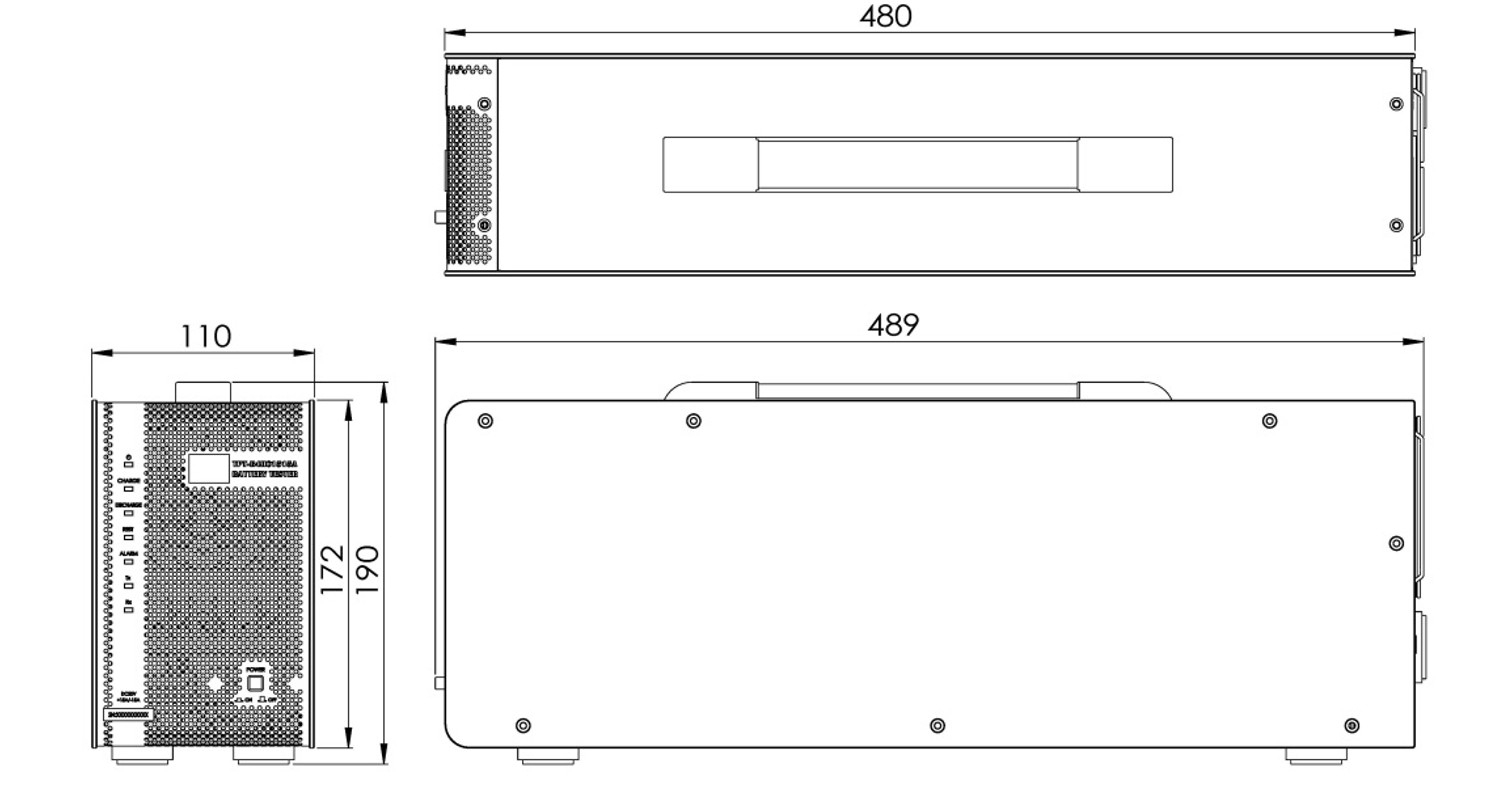

300W Frame Dimension Range：20V15A Unit：mm

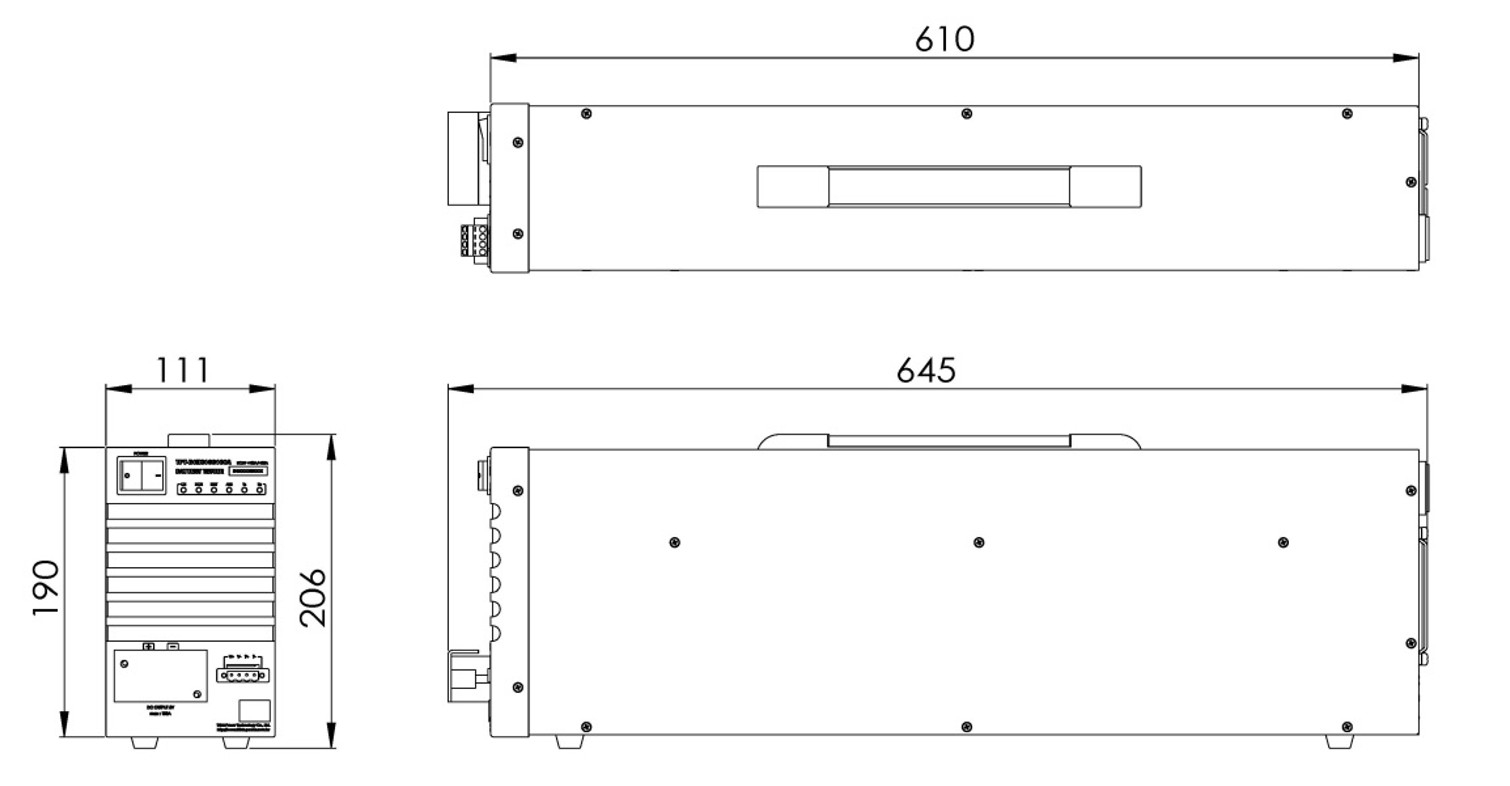

500W Dimension Range：20V15A Unit：mm

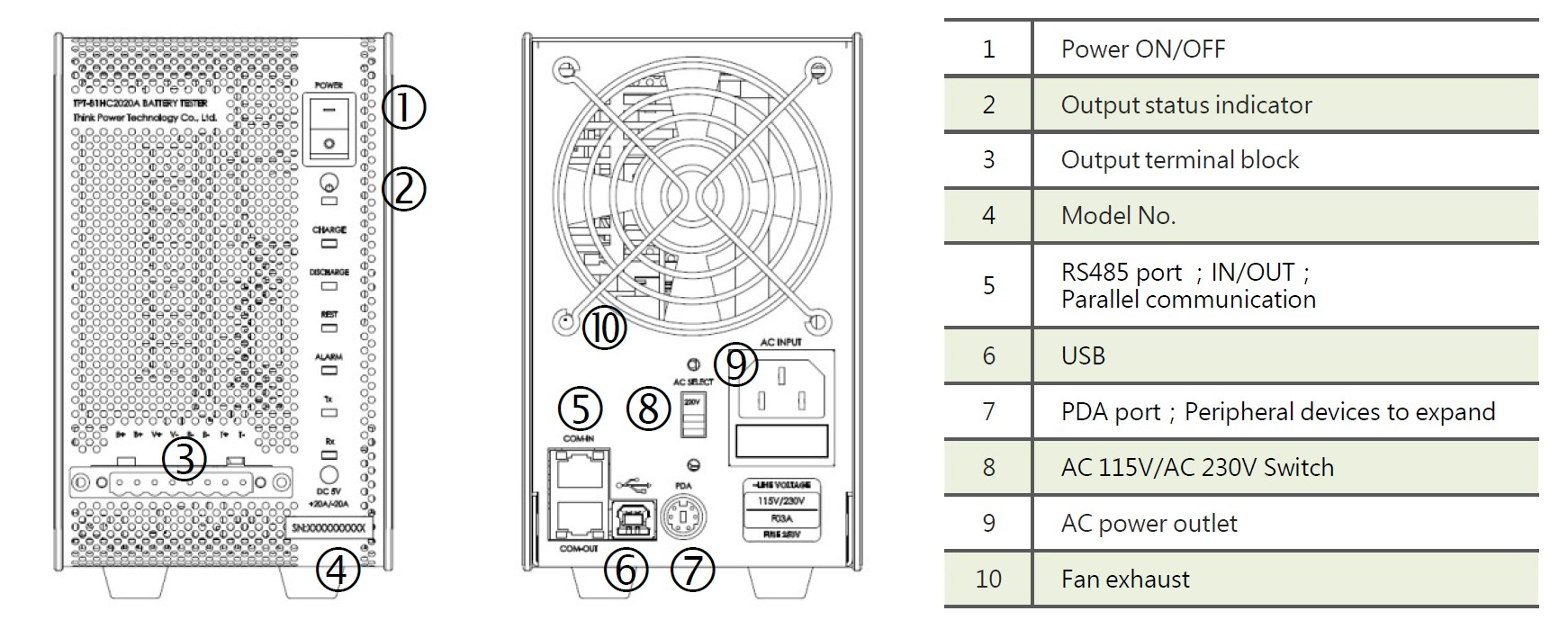

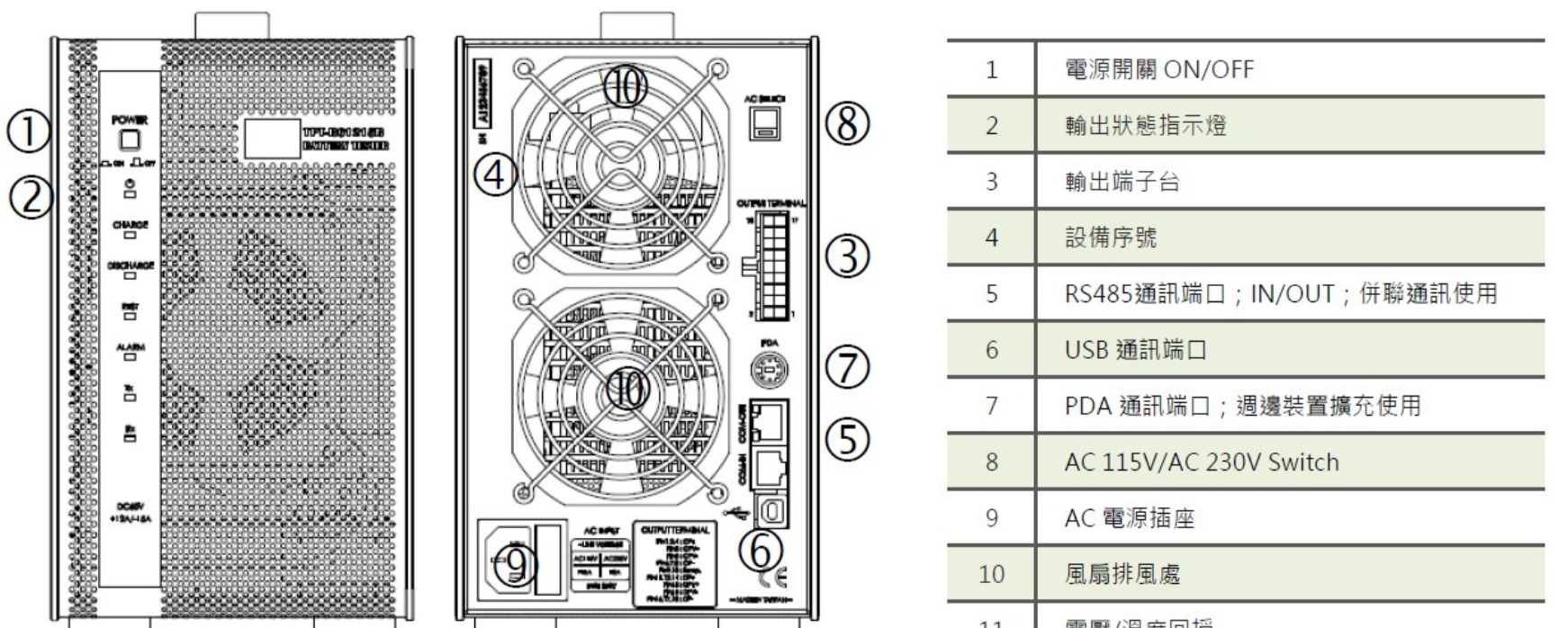

Interface Range： 5V20A
Interface Range： 5V20A

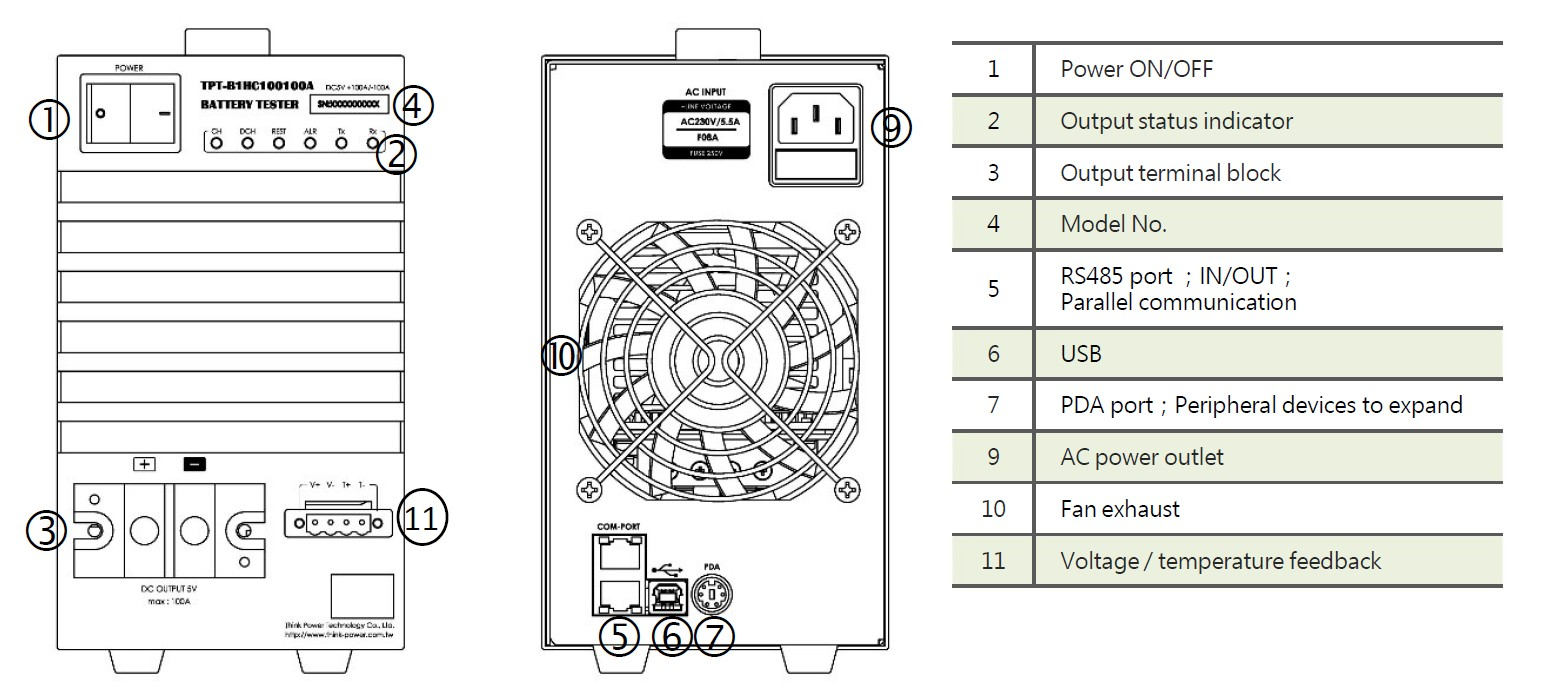

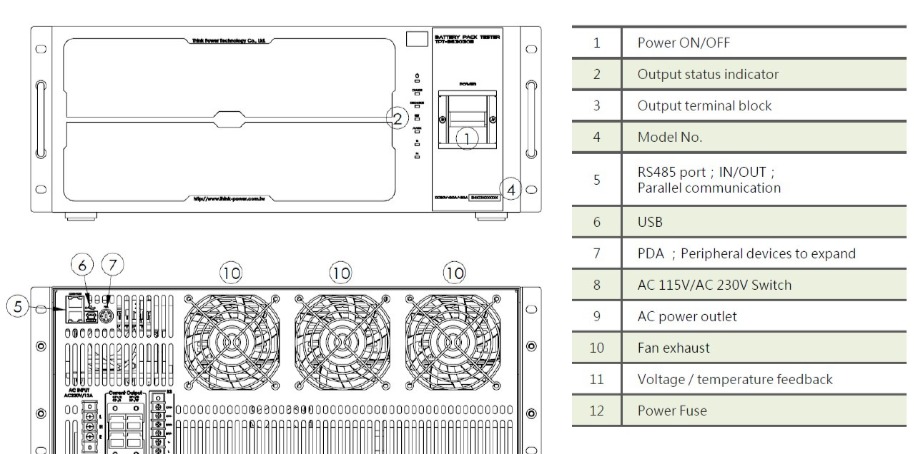

Interface Range：5V100A
ELECTRICAL SPECIFICATIONS
| Model | TPT-B1HC2020A | TPT-B1HC100100A | TPT- B4HC1515A | |||
| Load Range | 5V ±20A | 5V ±100A | 20V ±15A | |||
| 100W | 500W | 300W | ||||
| AC Input (AC115V/AC230V Switch) | AC 115V/2A | Only Support AC230V | AC 115V/4.5A | |||
| AC 230V/1A | AC 230V/5.5A | AC 230V/2A | ||||
| Output Function | Charge | CC、CC-CV、CC-CP | CC、CC-CV、CC-CP | CC、CC-CV、CC-CP | ||
| Discharge | CC、CC-CV、CC-CP | CC、CC-CV、CC-CP | CC、CC-CV、CC-CP | |||
| Output | CC | Range | +20A/-20A | +100A/-100A | +15A/-15A | |
| Resolution | 1mA | 1mA | 1mA | |||
| Accuracy | ± 0.02% F.S. | ± 0.02% F.S. | ± 0.02% F.S | |||
| CV | Range | Charge | -1.0V ~ 5.0V | -1.0V ~ 5.0V | -1.0V ~ 20.0V | |
| Discharge | 2.0V ~ 5.0V/L=5M | 1.5V ~ 5.0V/L=1M | 2.0V ~ 20.0V/L=5M | |||
| 1.5V ~ 5.0V/L=2M | 2V ~ 5.0V/L=3M | 1.5V ~ 20.0V/L=2M | ||||
| Resolution | 1mV | 1mV | 1mV | |||
| Accuracy | ± 0.02% F.S. | ± 0.02% F.S. | ± 0.02% F.S. | |||
| CP | Range | ± 100W | ± 500W | ± 300W | ||
| Resolution | 0.01W | 0.1W | 0.05W | |||
| Accuracy | ± 0.05% F.S. | ± 0.1% F.S. | ± 0.05% F.S. | |||
| Measurement | Voltage | Range | 0 ~ 5.1V | 0 ~ 5.1V | 0 ~ 21V | |
| Resolution | 0.1mV | 0.1mV | 0.1mV | |||
| Accuracy | ± 0.02% F.S. | ± 0.02% F.S. | ± 0.02% F.S. | |||
| Current | Range | 0 ~ 20.6A | 0 ~ 103A | 0 ~ 15.5A | ||
| Resolution | 0.1mA | 0.1mA | 0.1mA | |||
| Accuracy | ± 0.02% F.S. | ± 0.02% F.S. | ± 0.02% F.S. | |||
| Temperature | Range | -30℃ ~ 0℃ ≦ ±1℃；0℃ ~ 100℃ ≦ ±0.5 ℃；100℃ ~ 140℃ ≦ ±1℃ | ||||
| Resolution | 0.1℃ | 0.1℃ | 0.1℃ | |||
| Accuracy | ± 0.5℃ | ± 0.5℃ | ± 0.5℃ | |||
| Output Protection | Over voltage、Under voltage、Over current、Under current、Over temperature、Reverse polarity、 Fuse | |||||
| Heat Sink Protection | Heat sink overheat detection stop | |||||
| Communication Port | RS485；BR=115,200；Isolated ±15KV ESD | |||||
| Dimension (W x H x D) | 96 x 160 x 371 mm | 111 x 206 x 645mm | 110 x 190 x 489 mm | |||
| Weight | 3.8 Kg | 10Kg | 6.6 Kg | |||
| Operating Environment | 10 ~ 40℃；20 ~ 90 %HR | |||||
* F.S. = Full Scale ( Full Scale Range）
Periheral Devices
| Model | Specification | |
| 1 | TPT-G500A | I2C、SMBus、HDQ 3-in one Gas Gauge Box；Single channel |
| 2 | TPT-CG830A | I2C、SMBus、HDQ 3-in one Gas Gauge Box；Multi-channel |
| 3 | TPT-SV0516A | CellV Voltage scanning Box；± 5V x 16Ch |
| 4 | TPT-TMS16A | CellT Temperature scanning Box；-30℃ ~ 200℃；K Type |
| 5 | TPT-TMS16B | CellT Temperature scanning Box；-30℃ ~ 140℃；Thermistor Type |
| 6 | TPT-SW3015A | 2W Input Change 4W Output，Charge and discharge separation module；20V/15A |
Warranty & Services
- Free Hard / Software update
- Free online technology support service
- One year warranty
