TPT- B1S Series
5V Independent Power Supply Charging and Discharging Equipment
1.Complete independent module design
Single independent module design.
Independent channel control module.
Single independent module installation.
Meet the different characteristics of the batteries charge and discharge requirements, channel number to ensure uniqueness of the modules.
The user can expand and removed quickly through the device manager of new hardware installation and uninstallation.
Our after service is based on modular maintenance, efficiency and easy.
2.Long life design
A semiconductor switch is designed internal of modules, no life limited like mechanical contact , no arcing damage from switch high voltage . We ensure the equipment is running steadily and continuously for long time, so effectively extend the service life of equipment .Standard warranty for this series of products is two years.
Dimension 8Chs/Box Model： 5V10A、5V20A Unit：mm

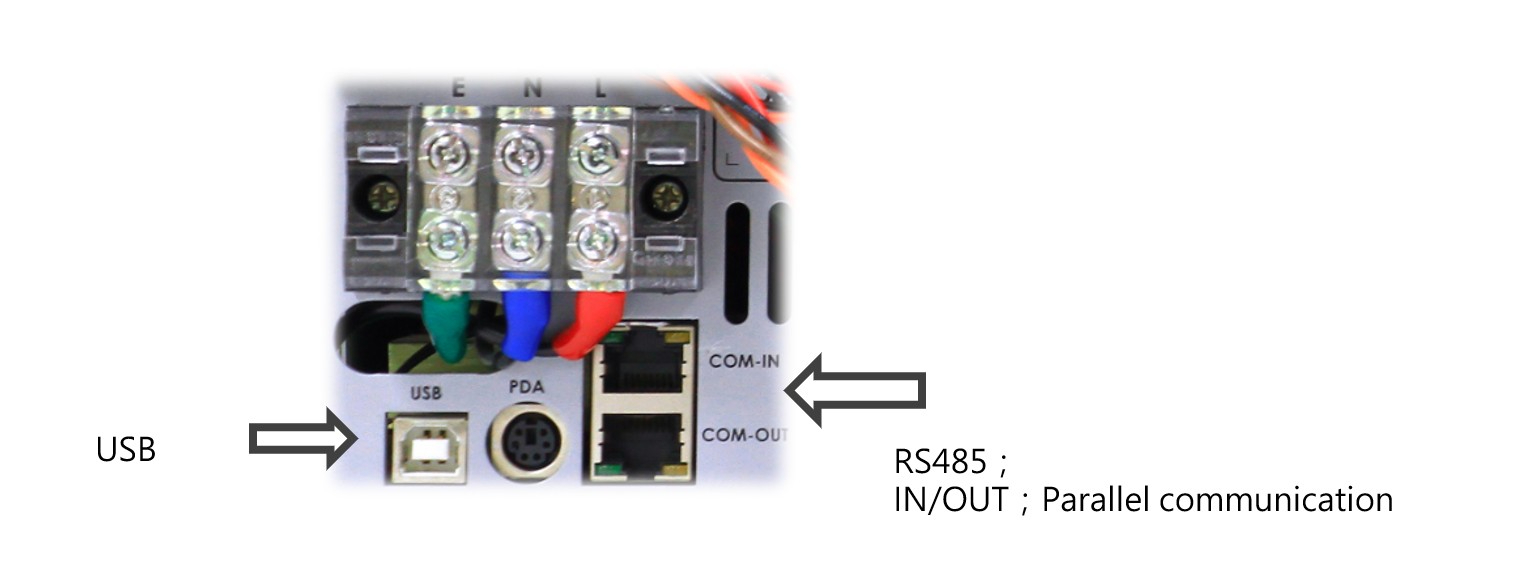

Communication Comport
ELECTRICAL SPECIFICATIONS
| Model | TPT-B1S1010A | TPT-B1S2020A | |||
| Load Range | 5V ±10A | 5V ±20A | |||
| 50W | 100W | ||||
| AC Input | AC230V/6A | AC230V/11.6A | |||
| Channels | 8 Chs/Box | ||||
| Output Function | Charge | CC、CC-CV、CC-CP | CC、CC-CV、CC-CP | ||
| Discharge | CC、CC-CV、CC-CP | CC、CC-CV、CC-CP | |||
| Output | CC | Range | +10A/-10A | +20A/-20A | |
| Resolution | 1mA | 1mA | |||
| Accuracy | ± 0.02% F.S. | ± 0.02% F.S. | |||
| CV | Range | Charge | -1.0V ~ 5.0V | -1.0V ~ 5.0V | |
| Discharge | 2.0V ~ 5.0V/L=5M；1.5V ~ 5.0V/L=2M；1.5V~0V/L=2M (Note1) | ||||
| Resolution | 1mV | 1mV | |||
| Accuracy | ± 0.02% F.S. | ± 0.02% F.S. | |||
| CP | Range | ±50W | ±100W | ||
| Resolution | 0.1W | 0.1W | |||
| Accuracy | ± 0.05% F.S. | ± 0.05% F.S. | |||
| Measurement | Voltage | Range | 0 ~ 5.1V | 0 ~ 5.1V | |
| Resolution | 0.1mV | 0.1mV | |||
| Accuracy | ± 0.02% F.S. | ± 0.02% F.S. | |||
| Current | Range | 0 ~ 10.3A | 0 ~ 20.6A | ||
| Resolution | 0.1mA | 0.1mA | |||
| Accuracy | ± 0.02% F.S. | ± 0.02% F.S. | |||
| Temperature | Range | -30℃ ~ 0℃ ≦ ±1℃；0℃ ~ 100℃ ≦ ±0.5 ℃；100℃ ~ 140℃ ≦ ±1℃ | |||
| Resolution | 0.1℃ | 0.1℃ | |||
| Accuracy | ± 1℃ | ± 1℃ | |||
| Output Protection | Over voltage、Under voltage、Over current、Under current、Over temperature、Reverse polarity、Fuse | ||||
| Heat Sink Protection | Heat sink overheat detection stop | ||||
| Charge/Discharge switch life | > 10^12；Unlimited number of charge/discharge switches, 5 Year s warranty | ||||
| Communication Port | RS485；BR=115,200；Isolated ±15KV ESD | ||||
| Dimension (W x H x D)mm | 483W x 270H x 365D (mm) | ||||
| Operating Environment | 10 ~ 40℃；20 ~ 90 %HR | ||||
Note1：Same as DC Load features. Voltage of battery is under 1.5V, the discharge current will presence drop by a linear mode, until the voltage and current is 0V、0A.The voltage’s lower range value can be lower, when the holding wire length is smaller than test specification value.
* F.S. = Full Scale
