Parallel
PBoxV1 can be used as a channel parallel device. PBoxV1 allow 2~8 channels to be used in parallel.Through the setting of the software, there is no need to change the setting of the hardware, which is fast and convenient.
External device
User can choose the external device according their test demands：
- CAN
- I2C、SMBus
- V-Scan、T-Scan
- IOR
The return data of external device can be used as process condition judgment in addition to synchronous recording with the charging and discharging channel data. The condition modes include：
- Next、GoTo、End、Alarm。
ThinkRP provides real-time data monitoring function：
- CAN data real-time monitoring , including manual data writing
- I2C、SMBus data real-time monitoring
- V、T Scan data real-time monitoring
- Relay ON/OFF、I/O Hi/Lo
External device：CAN
GCR-V100A has three functions：
CAN、I2C、SMBus alternative use.
CAN Use standard dbc format for import and use, users can modify commands and data by themselves. The use of CAN includes the mode of writing data in the process
- CAN Timing Type：
- Cycle、Event、Cycle Event
- CAN Signal Type： Static、Multiplexer
- GCR-V100A/CAN: Can be executed completely independently, without relying on software dynamic control
External device：I2C、SMBus
GCR-V100A + GR300A：I2C、SMBus alternative use.
- ThinkRP provide users self editing：
- SMBus、I2C Command
- Address (7Bit/10Bit)
- 100K/400K Hz
- 5V/3.3V Pull high
- SBS write
- GCR-V100A/I2C、SMBus
External device：Relay ON/OFF、IO In/Out
GCR-V100A + IOR100A
- Relay x 2
- Isolators Input IO x 2
- Isolators Output IO x 2
- Relay ON/OFF control。
- IO Input/Output control。
- Coordinate with process execution Key ON/OFF.
- Corordinate with process IO In/Out handover.
External device：V-Scan T-Scan

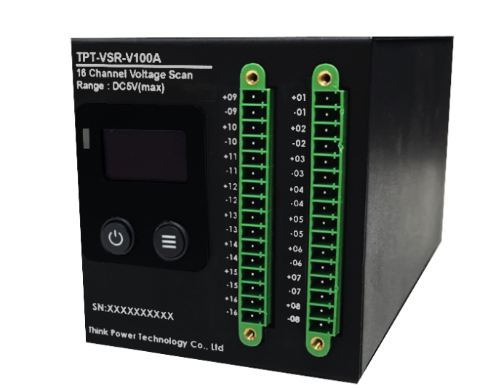

VSR-V100A：5V16Chs voltage scanning.
TSR-V100A：K Type16Chs temperature scanning.
- Real-time 16-channel reading on the hardware screen。
- It can be used as a recorder independently and can record up to 10,000,000 records continuously.
- 1 LTRp + 1 VTSR 。
- 1 LTRp + 3 VTSR 。(Max. 3 VSR+ 3 TSR)
- 8 LTRp + 1 VTSR (Multiple mode)。
External device specification：
- When the equipment is used with external devices, it can still maintain the Stand Alone mode without using the control computer connection.
- Through the manufacturing process, the equipment automatically determines whether it needs the matching of external devices.
- The operation of the parallel controller is exactly the same as that of the charging and discharging machine controller.
- CAN, I2C, SMBus can directly view real-time data in the software.
- Voltage scan, temperature scan, 16-channel scan speed per second, you can directly view the measurement scan value in the software and the device panel screen.
- VSR-V100A and TSR-V100A can be used as data loggers independently.
Parallel Channels Controller
Step Change Delay Time
CAN、I2C、SMBus Communication Box

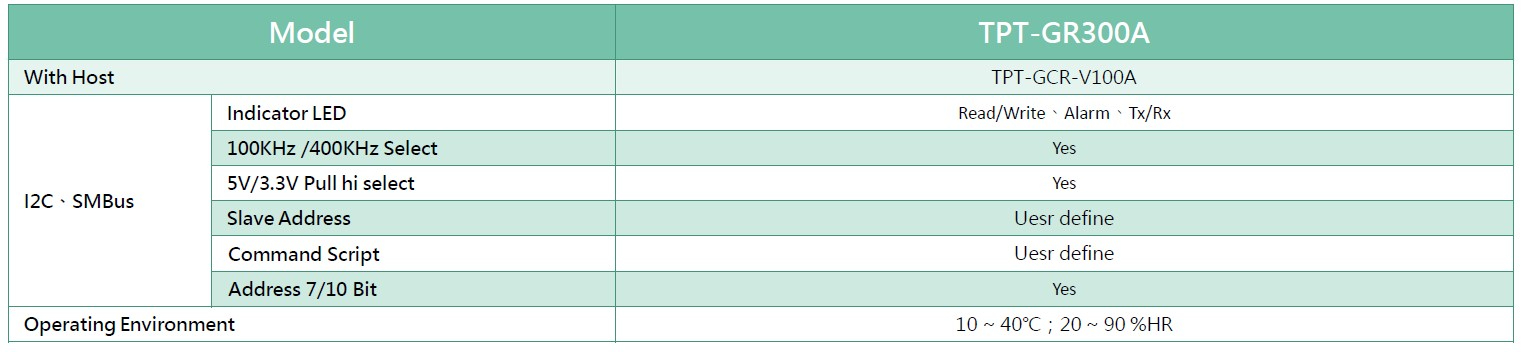

I2C、SMBus Extended Box
External device specification：
Relay、IO Extended Box
- IOR Active：Can perform IOR action during charging and discharging

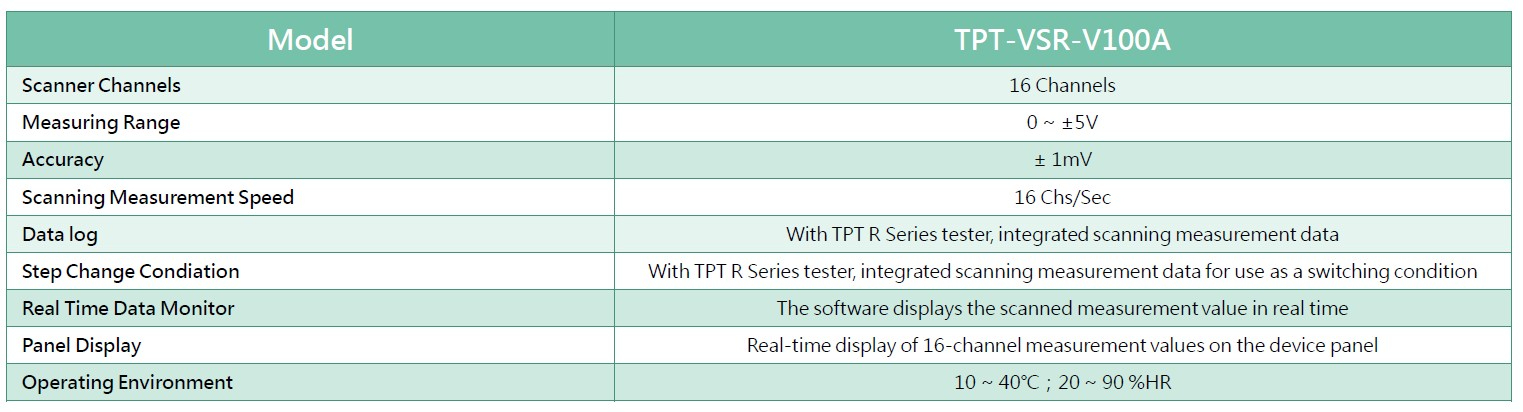

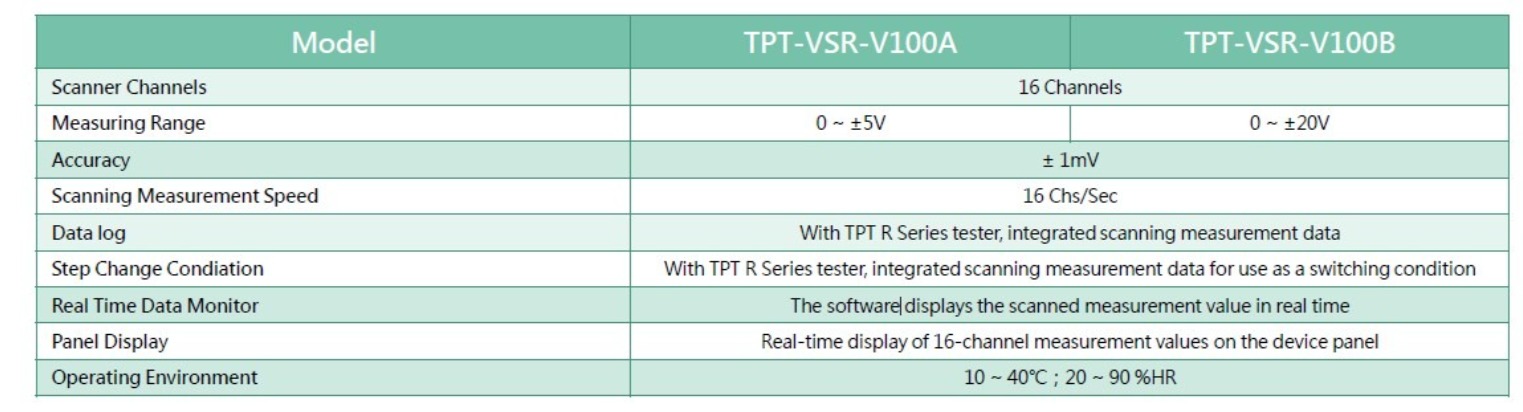

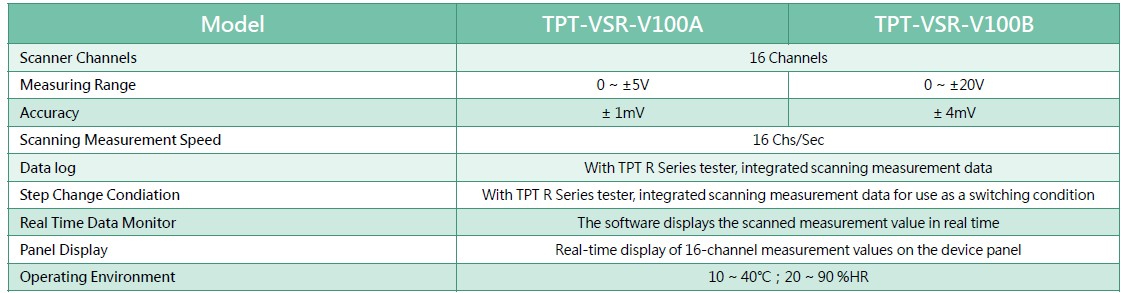

Voltage Scanner

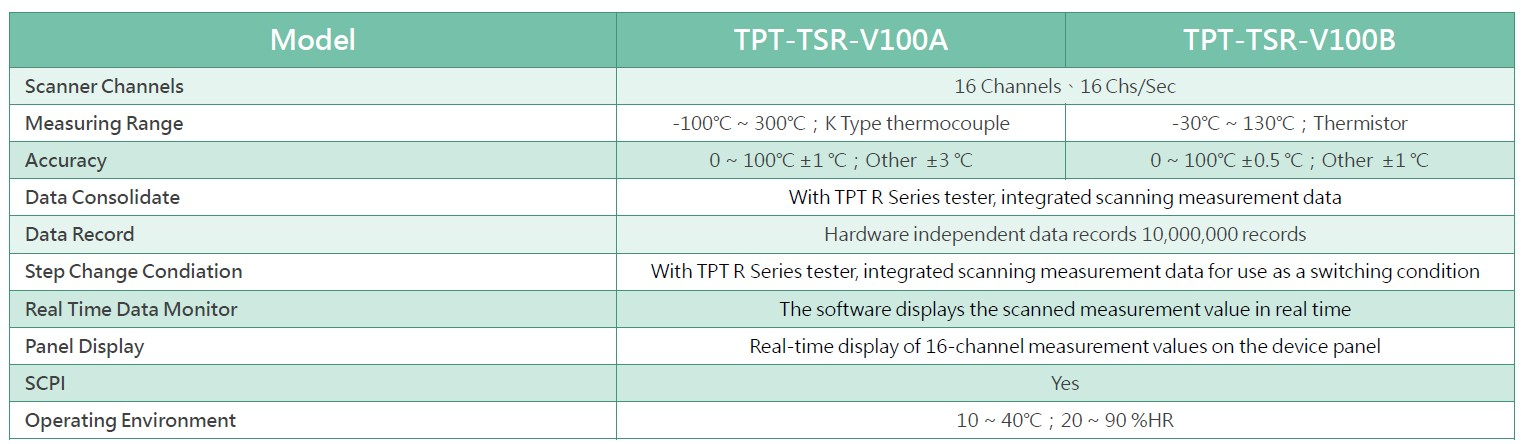

Temperature Scanner
◼ 1 LTRp + 1 VTSR 。
◼ 1 LTRp + 3 VTSR 。(Max. 3 VSR+ 3 TSR)
◼ 8 LTRp + 1 VTSR (Multiple mode)。
◼ The number of configurable channels of VTSR after parallel connection through PBox is the same as above
Warranty：One year warranty
