High-Rate Battery Module – Battery semi-test/Final test testing Equipment
High-Rate Battery Module – Battery semi-test/Final test testing Equipment
(SA-FA)PT20S40300A
Device Name:High-Rate Battery Module – Core Pack / Hard Pack Testing Equipment
Device Model:TPT-PT20S40300x
Device Specification :80V+40A-300A
Hardware Function:
  • High-Rate battery module charge testing
  • High-Rate battery module discharge testing
  • High-Rate battery module
  • Charge overcurrent protection time measuring
  • High-Rate  battery module
  • Discharge overcurrent protection time measuring
  • High-Rate battery module  Short circuit protection time measuring
  • High-Rate battery module ACIR measurement
  • High-Rate battery module DCIR measurement
  • Bar Code Reader
  • x16Ch Multifunction Sign measurement
  • x20Ch Programmable I/O
Communication Hardware Option
  • RS485
  • CAN Bus
  • I2C、SMBus
TPT-PT20S40300A   Through a programmable test function, High power battery pack - testing system consists of complete hardware system and optional communication module.

ThinkPTMvX   software   The test system differs from the traditional test functions, can meet the testing requirements of most high-power battery modules. Users don’t need to write their own test software. Through the ThinkPTMvX software, users select the existing test function modules, can write their own testing process and self-definition test specification.
ThinkPTMvX software  provides customization” Test Item “service in the special test function, to meet any testing, production needs and help user’s production testing   are simple, fast and accurate.


Communication Option   With different high power battery module communication system, choose different communication module, to meet the user communication requirements of different high power battery modules and testing. The communication modules include: RS485, CAN Bus , I²C / SMBus, NFC ... and so on, communication module also provides customized service.

High Precision  It is different from the traditional DC Load, Power Supply, the output voltage, current and measurement accuracy ± 0.02%, which can meet most of the test requirements.

Start /Stop noise   THINK POWER’s exclusive patented technology, high power battery module charging and discharging test, use of nothing relay charge and discharge switching. Can be effectively inhibit the charge / discharge start noise, to avoid the high power battery module misoperation.

Life Cycle   In general, the test of high power battery module need to be executed in dynamic module, the protection action of charge / discharge can be disconnected normally, have to be powered off by On Line. This kind of testing, usually causes the mechanical contact of relay ,because of the high pressure high current, creates the contact welding, the charge / discharge or the battery module lead to a short-circuits during the test process. THINK POWER’s exclusive patented technology, use of nothing relay charge and discharge switching. No charge and discharge switching of the mechanical component makes the system useful life longer, the test results more reliable.


Software Name:ThinkPTMvX

Software Function:
  • FW Version comparison
  • Input Manufacture Date
  • Input ID NO.
  • Charge Testing
  • Discharge Testing
  • Charge overcurrent protection time measuring
  • Discharge overcurrent protection time measuring
  • Short circuit protection time measuring
  • ACIR measurement
  • DCIR measurement
  • Bar Code Reader
  • Open Circuit Voltage measurement
  • Communication Parameters comparison
  • Communication Flag comparison
  • Input Communication Data
  • Voltage Correction comparison
  • Current Correction comparison
  • Temperature Correction comparison
  • Balancing plate function testing
  • Battery cells pressure difference detection


Automated Testing
Function:
  • Check Bar Code correct or not, then uploading
  • Check Bar Code uploading testing process
  • Battery module locating start test  I/O
  • Battery module end of test shift out  I/O
  • End of test  OK/NG indicated  I/O
  • End of test, uploading the data


ThinkPTMvX   Software    The test system differs from the traditional test functions, can meet the testing requirements of most high-power battery modules. Users don’t need to write their own test software. Through the ThinkPTMvX software, users select the existing test function modules, can write their own testing process and self-definition test specification.

Test Function   According to customer’s testing and production needs of test functions, to meet customer requirements for independent testing. The user still able to use quickly and easily, don’t have to understand the test programming. Test Function provides customized services to meet the needs of customers in different tests.

Parameter Setting   Open parameter settings, to meet a variety of different test specifications requirements. Users can adjust the best test specifications and understand the electrical marginal characteristics.

Parameter Setting   Open parameter settings, to meet a variety of different test specifications requirements. Users can adjust the best test specifications and understand the electrical marginal characteristics.

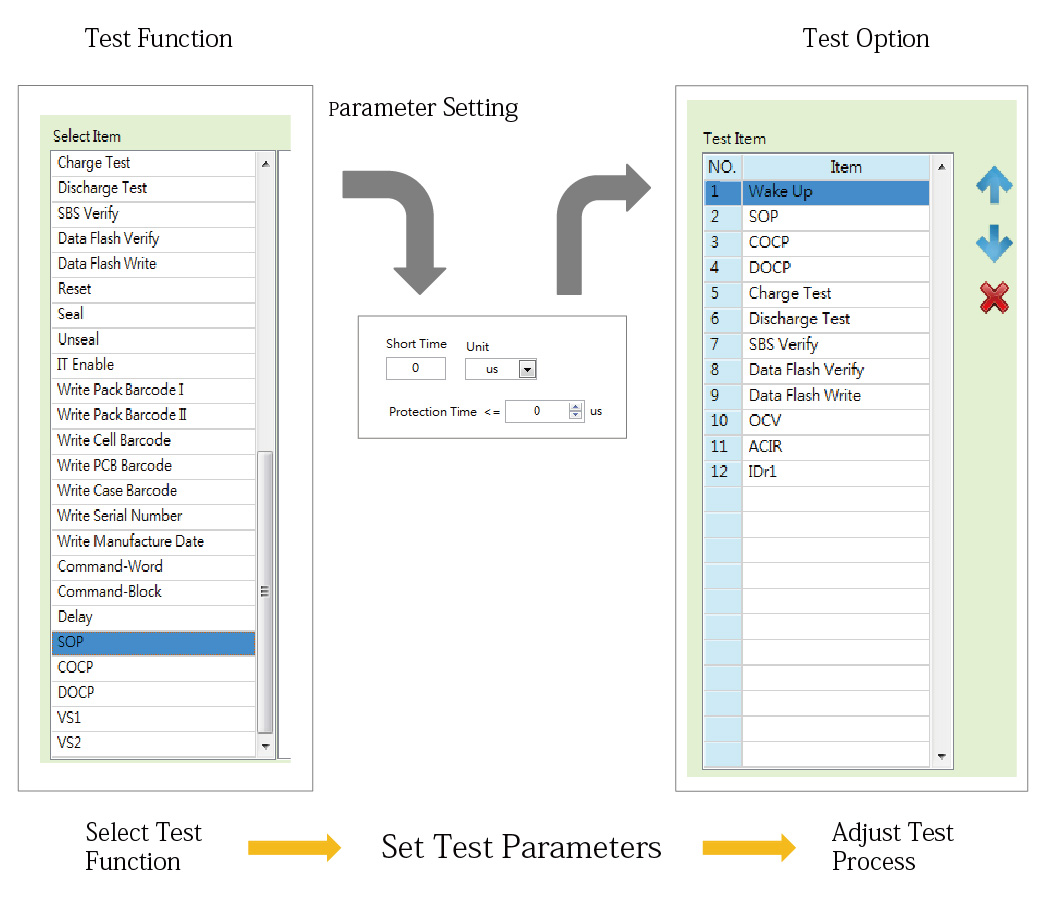

Adjustment Test Process   With the product complexity, test equipment should have the greatest flexibility of the testing process in order to meet the product function testing needs. With a set of Test Function, and the unlimited Parameter Setting self-defining, the final user also needs an adjustable Test Process, so that the user could edit their own production testing processes with fully tailored.

Automated Test   Self-defining I / O provide the user with maximum flexibility of the automated production line layout. Self-defining I / O is an option of the Test Function and  one of the Test Process adjustable items. Users can setup their own automated production line without the extra expense.

Electrical Specificationsfor TPT-PT20S40300x

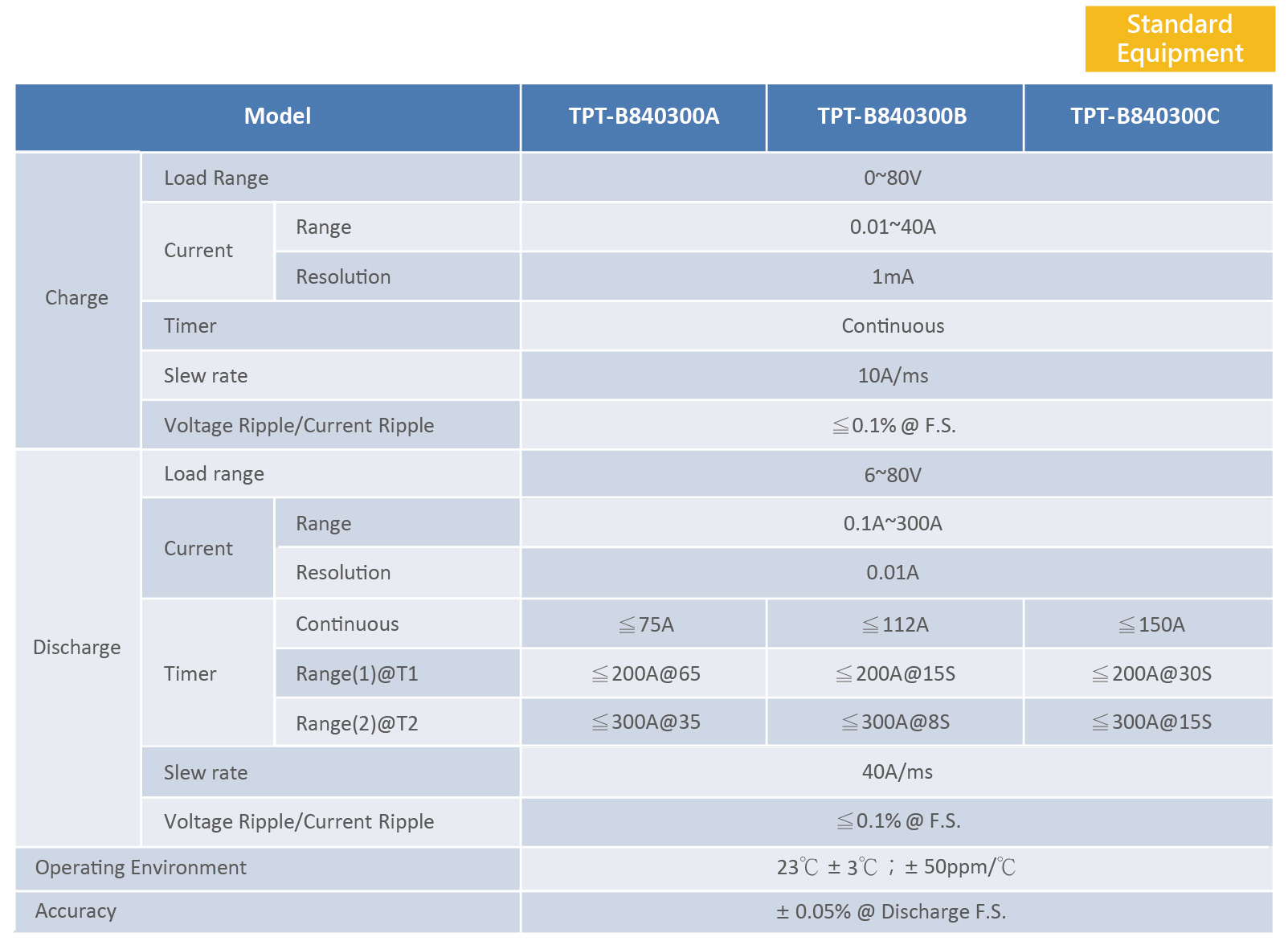

Charge / Discharge specifications:

Electrical Specifications  for TPT-PT20S40300x

Short/Charge/Discharge Protection Module specifications:
ACIR  measurement  specifications:

Temperature & humidity:23 ˚C ±5 ˚C, 80% rh or less (non-condensating)

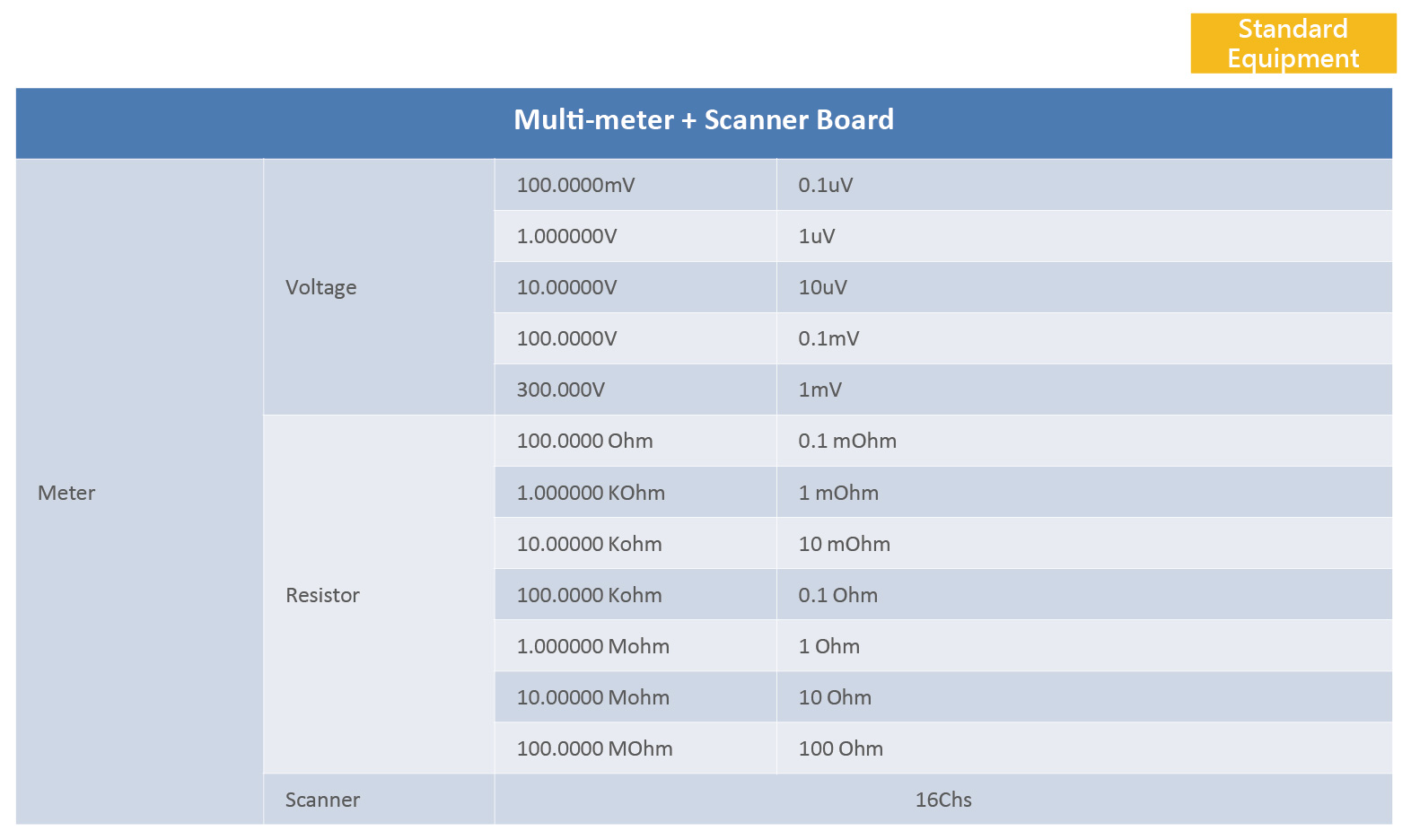

Multi-meter specifications:

Electrical Specifications for TPT-PT20S40300x

Other specifications:

Warranty:
  • One year warranty but personal behavior is exception
